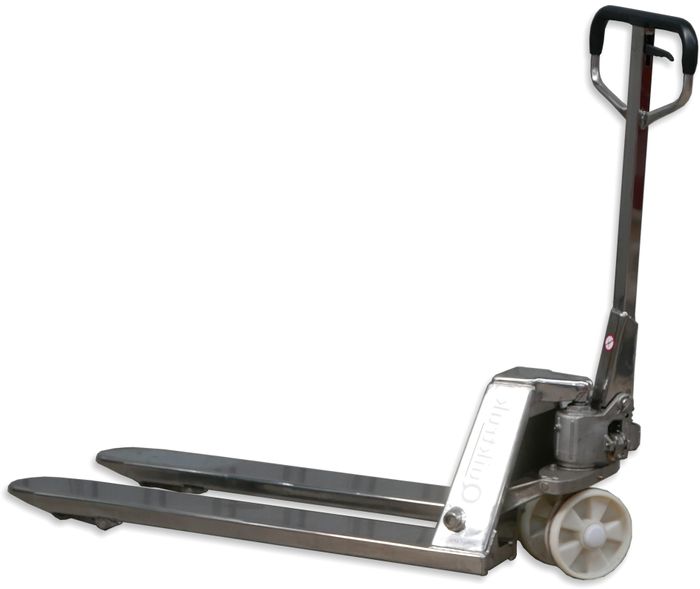

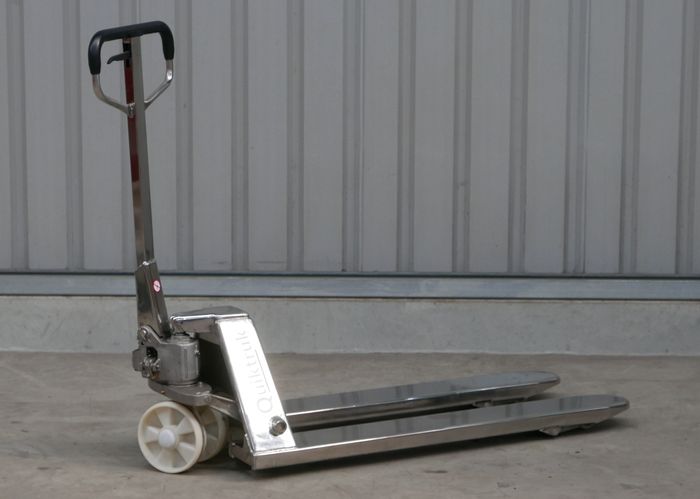

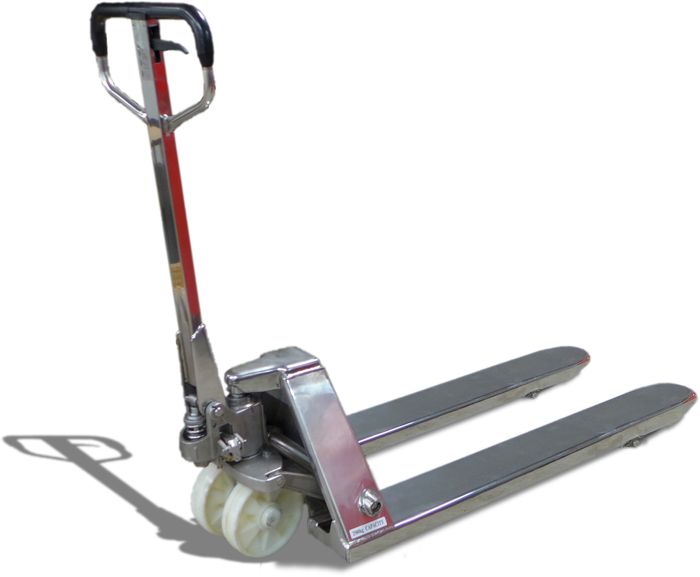

Quiktruk MS25
Quiktruk MS25-series pallet trucks are 304 stainless-steel 2.5t hand trucks from Simpro, with a polished food-grade finish for hygiene-critical industries. Ideal for food processing, pharmaceuticals and cold logistics, MS25 runs standard 540mm forks, while MS25W widens the fork spread to 685mm for greater stability under awkward or overhanging loads. Both handle CHEP and EURO pallets from two directions, as well as bulk bins and IBCs.
Weighing under 80kg, MS25-series trucks are easy to move and very manoeuvrable, with a 1286mm turning radius. Large nylon rear wheels and tandem rollers on pivoting bogies give jam-free travel, while the fully sealed dual-mode pump is maintenance-free to 60,000 cycles and uses a low-viscosity fluid suitable for freezers and coolrooms.
Like all Simpro pallet trucks, MS25-series trucks comply with international standards and are manufactured in an ISO9000-certified plant. They are backed by a one-year warranty.
- Capacity 2500kg
- Material 304 stainless steel
- Pump sealed dual-mode
- Service life 60,000 cycles
- Fork dimensions 540/685x1150x85mm (CHEP/Loscam 2-way)
- Weight 70~80kg
- Certification CE/UKCA
- Warranty 12-month back-to-base
| Quiktruk M25S Specifications | |
|---|---|
| Model | M25S |
| Rated load capacity ("Q") | 2500kg |
| Fork height, lowered ("h13") | 85mm |
| No. wheels, body | 2 |
| Wheel dimensions, body | ⌀200mm x 50mm |
| No. wheels, forks | 4 |
| Wheel dimensions, forks | ⌀74mm x 70mm |
| Maximum lift height ("h3") | 200mm |
| Lift height per stroke | 16mm |
| Tiller height, min / max ("h14") | 490mm / 1224mm |
| Overall length ("l1") | 1533mm |
| Length to face of forks ("l2") | 383mm |
| Fork length ("l") | 1150mm |
| Fork width ("e") | 160mm |
| Fork depth ("s") | 45mm |
| Width overall forks ("b5") | 550mm |
| Ground clearance, centre of wheelbase ("m2") | 40mm |
| Aisle width for pallets 1000x1200 crossways ("Ast") | 1733mm |
| Aisle width for pallets 800x1200 lengthways ("Ast") | 1783mm |
| Turning radius ("Wa") | 1266mm |
| Materials | 304-grade stainless steel with polished finish |
| Service weight | 70kg |
