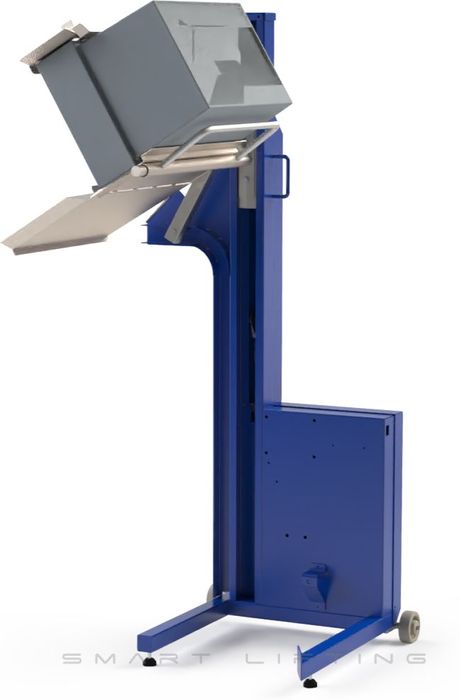

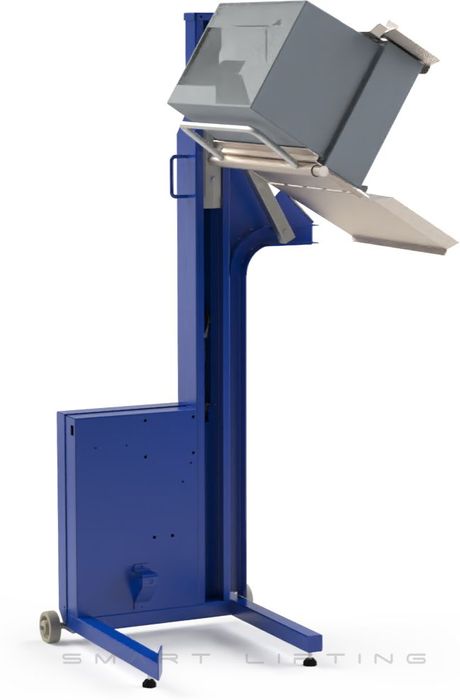

Microtipper
Microtipper is a compact electric bin tipper from Simpro, with 150kg capacity and a range of modular cradles to suit bins, capsules, crates and rolls. It is an ideal solution for food-processing plants looking to eliminate manual handling from their production areas.
Featuring a unique monomast design, Microtipper offers excellent visibility and tips bins at a height of 1200mm, suitable for sorting and cutting tables. The electro-hydraulic mechanism has a lifting capacity of 150kg, and can be powered by battery, 3-phase mains, or single-phase mains with VSD. The automatic tipping sequence is controlled by a PLC, which can be programmed with custom operation behaviour. Manual controls and a prominent Emergency Stop button are provided for safety.
With a welded steel frame, powdercoat finish and IP54 ingress protection, Microtipper is built to last and needs little maintenance. Made in New Zealand by Simpro, Microtipper is backed by a two-year warranty.
- Capacity 150kg
- Tipping height 1200mm
- Cradles to suit nesting tubs, fish bins, and other foodgrade containers
- Powerpack battery, 3-phase mains, or 1-phase mains with VSD
- Duty cycle ~4.5t/hour continuous
- Tipping cycle ~14 seconds
- Safety rating CAT1/PLc
- Dimensions 814 x 886 x 1835-1846mm (LxWxH storage-service)
- Weight ~150kg
- Mounting four adjustable feet with rubber pads
- Warranty 24-month back-to-base (registration required)
