CQE15S

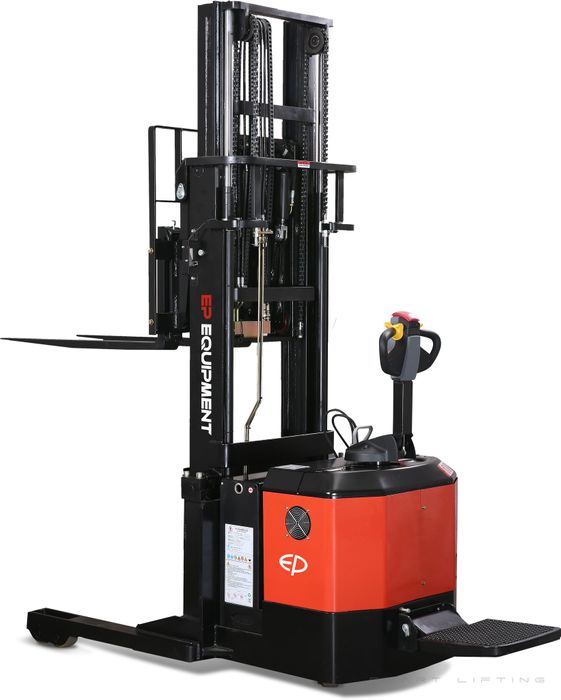

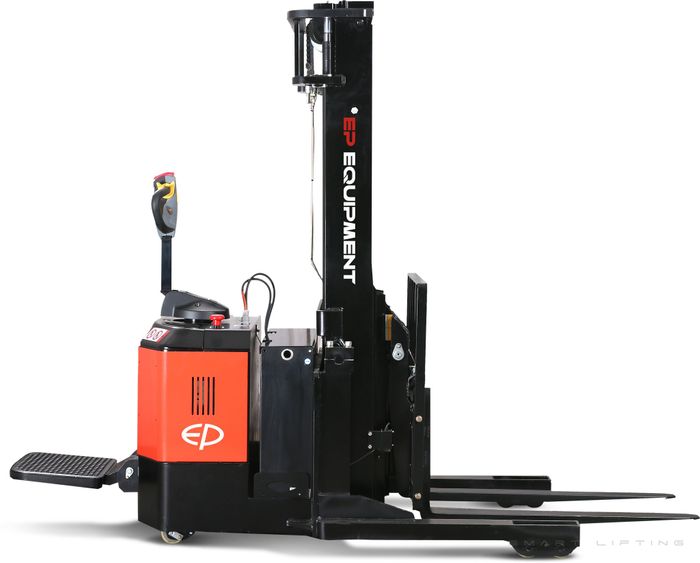

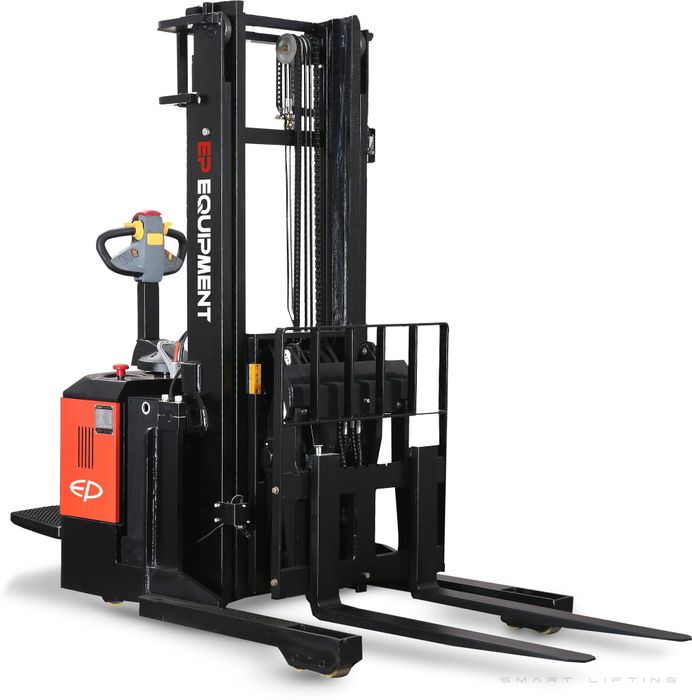

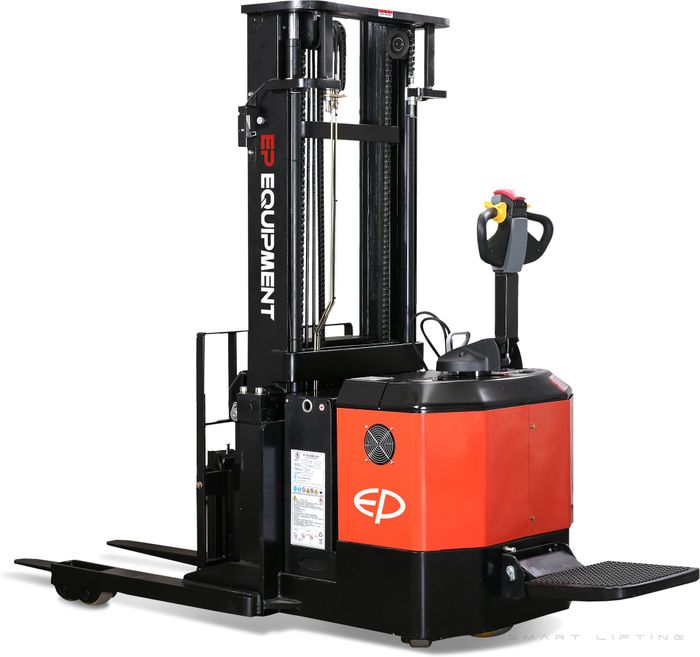

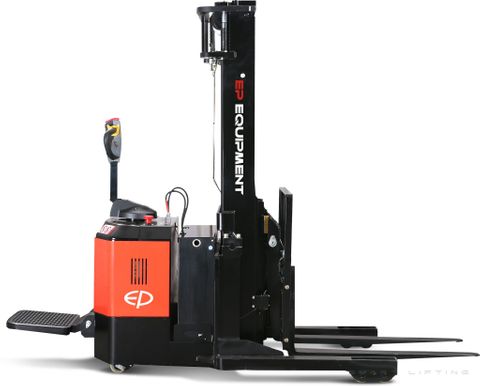

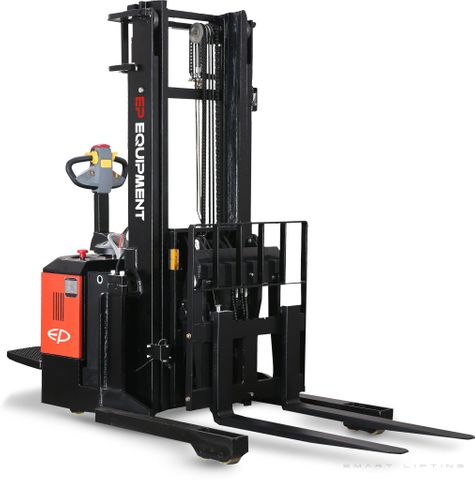

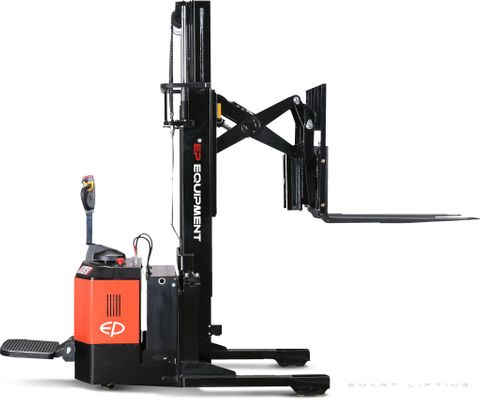

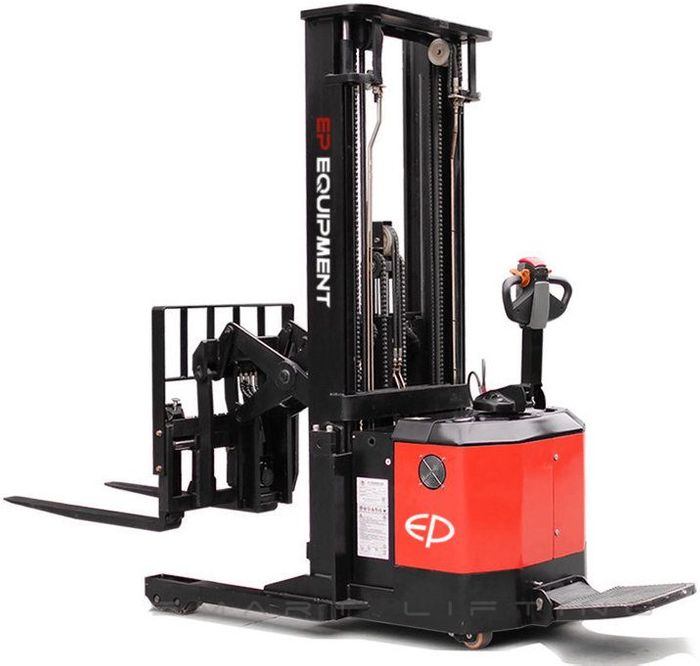

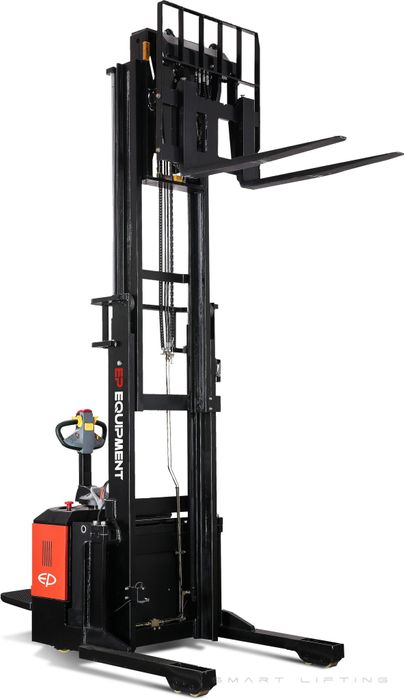

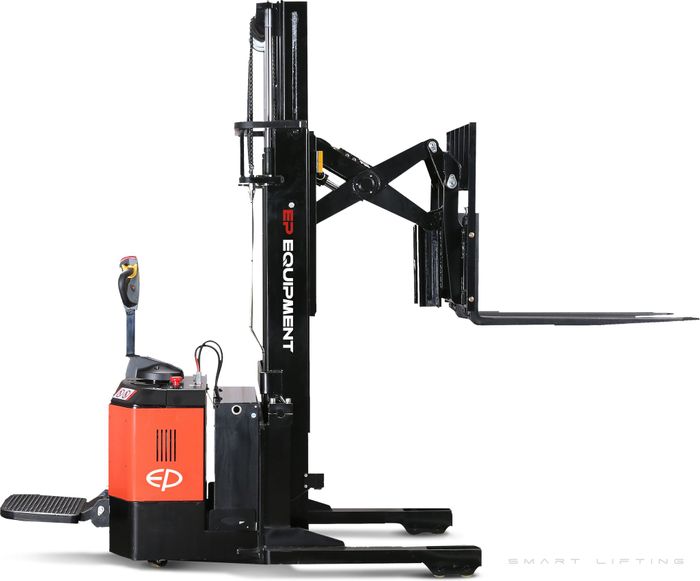

CQE15S is a pedestrian reach stacker from EP Equipment, with 1.5-tonne capacity, duplex or triplex mast and pantograph reach. Featuring a spring-loaded operator platform, CQE15S can be used in both pedestrian and ride-on modes, allowing it to fill a wide range of logistics needs.
With a choice of removable 6.7kWh lead-acid or 5.0kWh LFP battery, CQE15S supports both battery exchange and opportunity charging for around-the-clock operations. The ZAPI AC controller provides enough power to navigate ramps and uneven terrain, while the triplex mast includes free-lift, tilt and sideshift, suitable for both unloading trucks and devanning shipping containers.

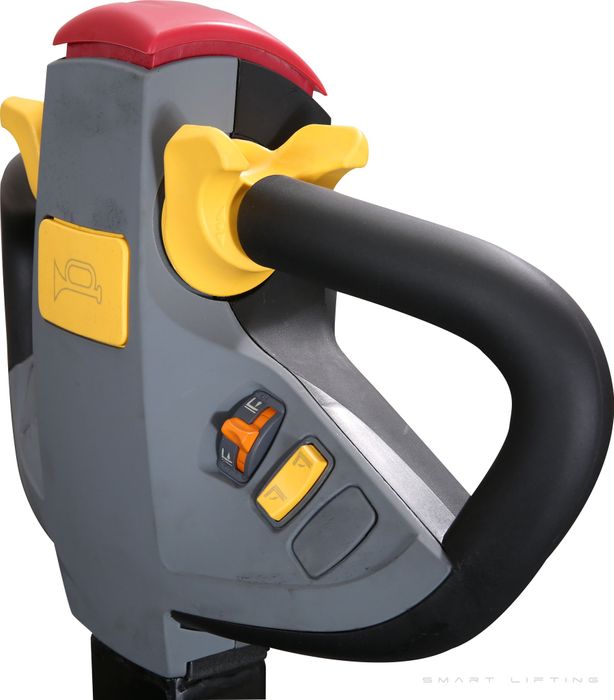

The truck is easy to operate, with an ergonomic tiller head, proportional dual-hand controls and electronic power steering. A range of safety features are fitted as standard, including automatic anti-rollback brakes, a crush-safety button and hose-burst valve. A cold-conditioned variant is available for freezer and coolroom logistics.
Robust and affordable, CQE15S is ideal for the logistics needs of Kiwi SMEs. It is backed by a two-year EP warranty.
- Capacity 1.5-tonne at 600mm
- Mast 4.8m triplex (options 3.2m to 6.0m)

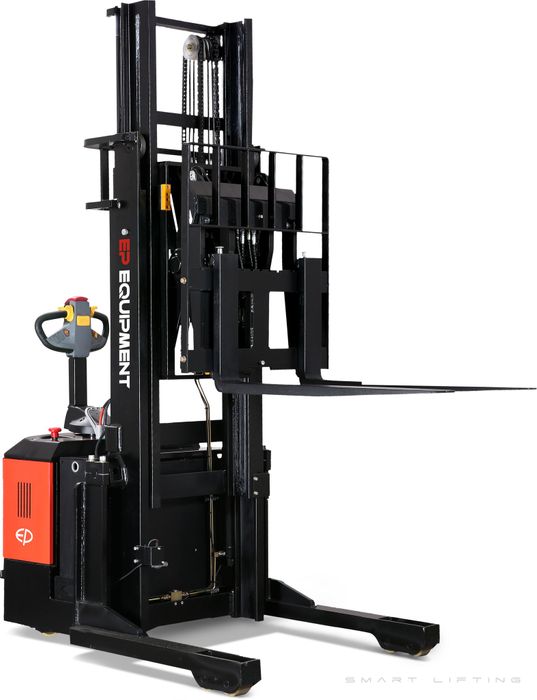

- Reach 590mm pantograph with tilt and sideshift
- Motor 3.3kW AC drive, 4kW lift
- Battery 24V/280Ah lead-acid or 24V/205Ah LFP
- Charger 24V/30A or 24V/100A offboard
- Speed 5.5/6km/h (laden/unladen)
- Aisle width 2753mm (1000 x 1200 pallet)
- Weight 1950~2150kg
- Warranty 24-month factory
