Euroblaster

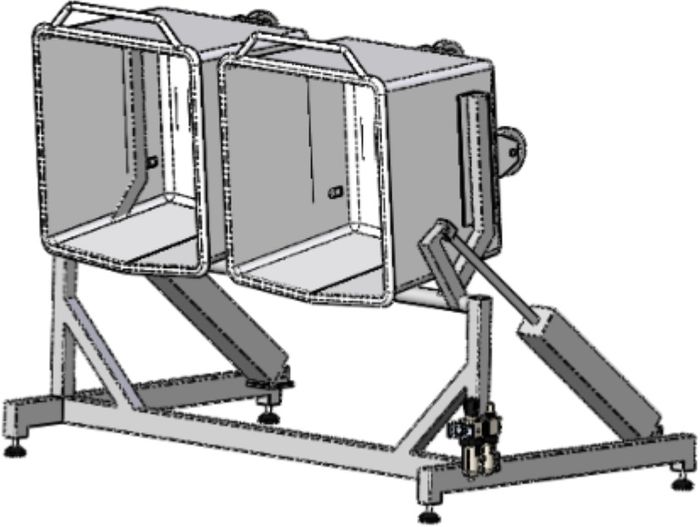

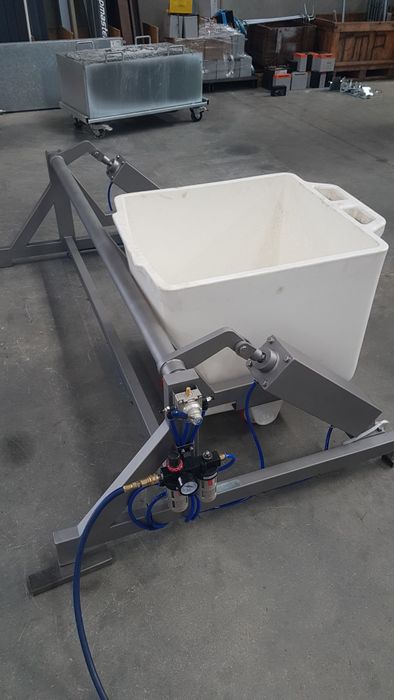

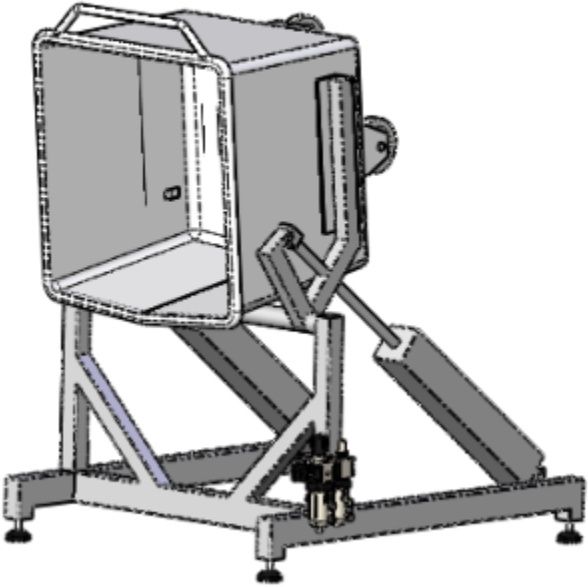

Euroblaster is a pneumatic food-grade bin wash frame from Simpro, which inverts common ingredient bins at an ergonomic height for easy cleaning and sterilisation.

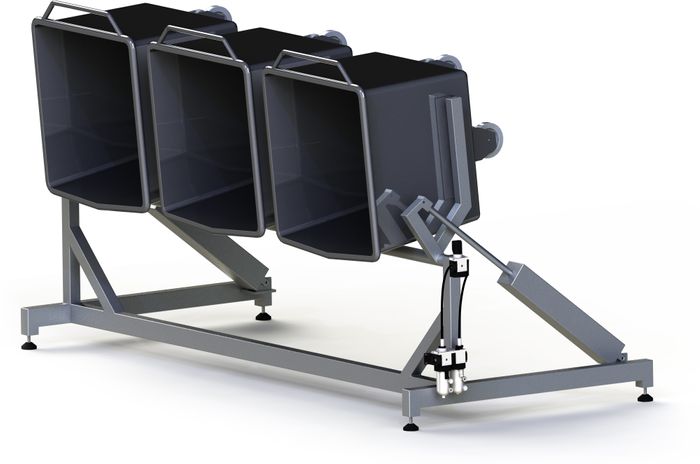

The Euroblaster can be fitted with lifting arms to suit FoodCaps, FluroBins or Eurobins, and can lift up to three bins at a time for maximum productivity. Powered by two pneumatic rams, the Euroblaster requires no electricity to operate, eliminating the risk of electric shock in damp washdown environments. A compressed-air supply of 0.4MPa or more is required.
Manufactured from 304-grade stainless steel with bead-blasted finish, the Euroblaster is easy to clean and completely corrosion-resistant. It is an ideal solution for food-processing plants which need to manually clean up to 100 bins each day.
- Suits 200L/300L DIN9797 Eurobins
- 120kg lifting capacity
- Compressed-air powered
Euroblaster Specifications | |||
---|---|---|---|
Model | ERB1 | ERB2 | ERB3 |
Number of cradles | 1 | 2 | 3 |
Tipping height | ~640mm | ||
Height (cradle lowered / raised) | ~660mm / 1414mm (with 200-litre Eurobin) | ||
Width ("WO") | 940mm | 1780mm | 2620mm |
Length | 1150mm | ||
Weight | ~45kg | ~74kg | ~100kg |
Capacity (max bin weight) | ~100kg (with 0.8MPa compressed air supply) | ||
Bin compatibility (DIN9797 cradle) | DIN9797-compliant EuroBins and FluroBins (options: cradle to suit FoodCaps) | ||
Power specifications | 0.4-0.8MPa compressed air supply, operating 2x pneumatic rams | ||

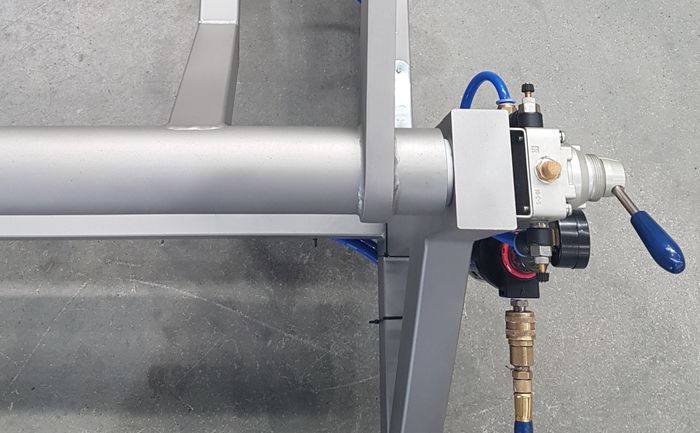

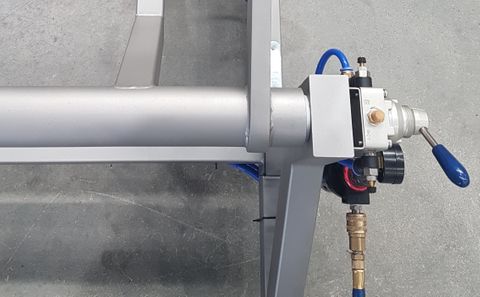

User interface | Raise/Lower lever, compressed air regulation valve and pressure indicator | ||
Ingress protection | IP66 | ||
Cradle travel speed | Dependent on bin weight and compressed air pressure | ||
Tipping cycle duration | Dependent on bin weight and compressed air pressure | ||
Noise level at operator’s ear | ⪅ 40dB(A) | ||
Materials | 304-grade bead-blasted stainless steel frame, lifting arms and rams; plastic valves and accessories | ||
Mounting | 4x stainless steel screw-levelling feet | ||
Applicable Standards and Certifications | AS/NZS4024, ISO 13849-1, IEC 62061, Conformité Européene (CE), EN 349 1993, EN ISO 4413 2010, EN ISO 12100 2010, EN ISO13849-1 2006, EN ISO 13857 2008, Machinery Directive 2006/42/EC |
