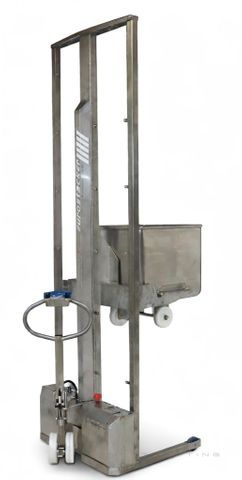

Eurostacker
Eurostacker is a compact semi-electric stacker from Simpro, with hygienic stainless-steel construction and a lifting carriage to suit DIN9797 Eurobins. It is ideal for food-processing applications where Eurobins need to be moved, stacked, stored in racking or loaded into trucks.
With a reliable electro-hydraulic system, the Eurostacker can Eurobins weighing up to 250kg to a height of 2000mm. The monomast structure keeps weight to a minimum while improving visibility, and the triangular wheel layout ensures full control on any surface. Less than a metre wide, and able to turn in its own length, Eurostacker is ideal for small coolrooms and chillers.
Manufactured from SAE304 stainless steel, and fitted with IP66 switchgear, Eurostacker is suitable for use in washdown environments. The standard model is fitted with two 12V/20Ah GEL batteries capable of lifting up to 6 tonnes of product per charge; for more intensive needs, a hot-swappable Lithium-ion battery pack can also be specified.
Like all Simpro products, the Eurostacker is designed for intensive daily use with little maintenance. It is backed by a two-year warranty.
- 2000mm lift height
- 250kg lifting capacity
- Type-D cradle to suit DIN9797 Eurobins (200L/300L with trunnions)
- Battery powerpack, 24V/20Ah gel, 3-hour charge (input 100-264V 1-ph 50/60Hz ≤3A) (option: removable 24V/20Ah LFP battery with offboard charger)
- Duty cycle ~6000kg/charge
- Two-hand safety controls
- Dimensions 990mm long x 878mm wide x 2782mm high
- Service weight ~250kg
- Two 200mm steered wheels and two 100mm load wheels
- 24-month back-to-base factory warranty
| Eurostacker Specifications | |
|---|---|
| Model | ES2000 |
| Maximum load capacity ("Q") | 300kg |
| Bin compatibility | DIN9797 Eurobins and Flurobins (options: other custom bins, crates) |
| No. wheels, body | 2 |
| Wheel dimensions, body | 200mm |
| No. wheels, outriggers | 2 |
| Wheel dimensions, outriggers | 80mm |
| Overall height ("h1") | 2575mm |
| Overall height, mast raised with bin ("h2") | 2930mm |
| Maximum lift height ("h3") | 2000mm |
| Overall length ("l1") | 1250mm |
| Length to face of forks ("l2") | 650mm |
| Overall width ("b1") | 820mm |
| Fork length ("l") | 650mm |
| Fork width ("e") | 10mm |
| Fork depth ("s") | 65mm |
| Width overall forks ("b5") | 760mm |
| Turning radius ("Wa") | 1400m |
| Travel speed | Operator dependent |
| Lift speed, laden / unladen | 0.08m/s / 0.1m/s |
| Lower speed, laden / unladen | 0.15m/s / 0.12m/s |
| Noise level at operator’s ear | ⪅ 60dB(A) |
| Materials | 304-grade stainless steel with polished finish (options: Mild steel with powdercoated finish) |
| Service brake | Mechanical |
| Battery voltage / nominal capacity | 12v / 21A/h |
| Battery weight | 6.2kg |
| Battery dimensions (L x W x H) | 180mm x 75mm x 165mm |
| Service weight | ~180kg |
