CQD12SSD

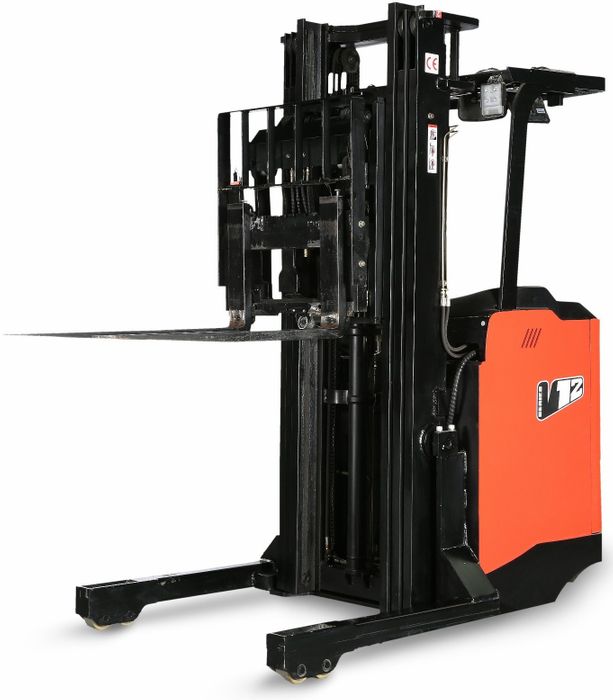

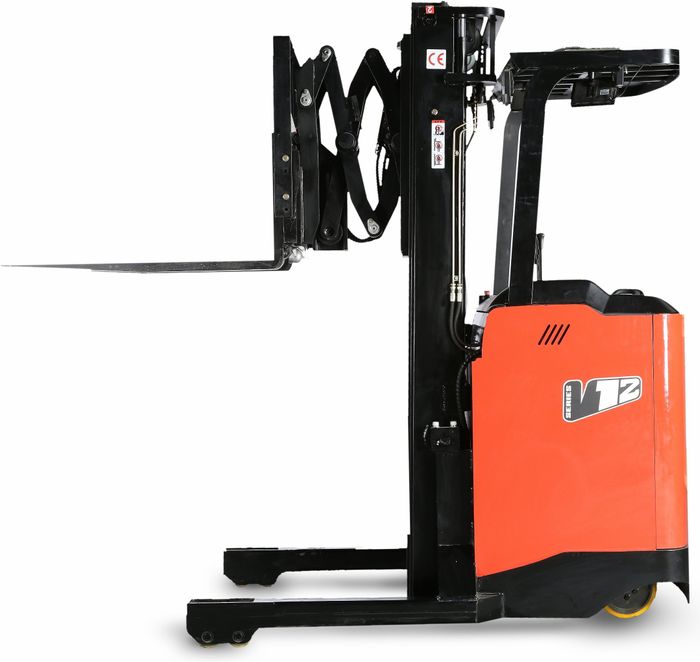

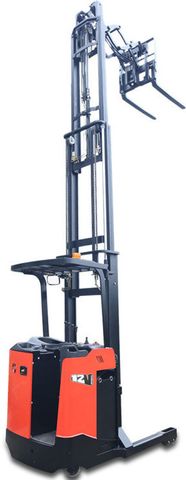

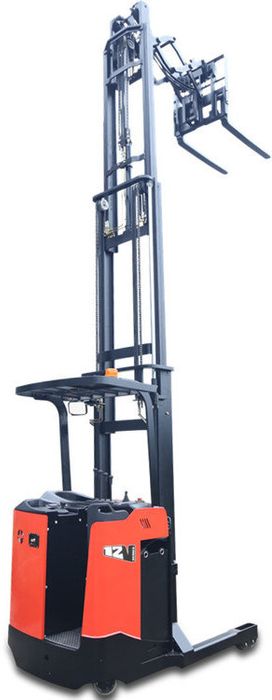

CQD12SSD-4800 is a 1.2-tonne reach truck from EP Equipment, with standing operation, lift heights up to 5.5 metres and 1000mm duplex-pantograph reach. The truck's extended reach and integrated camera system allow four bays of racking to be serviced from a single aisle - increasing warehouse density by up to 30%.
Designed for intensive 24/7 operations, CQD12SSD has a 48V/420Ah lead-acid battery on a lateral roller bed, with an external charger. Quality European components and a ZAPI AC drive controller ensure maximum uptime, while the standard triplex mast with free-lift allows containers to be devanned.
As standard, CQD12SSD has a vibration-absorbing operator platform with backrest, electronic power steering and fingertip controls. A range of safety features are provided, including overhead guarding, anti-rollback braking and a hose-burst valve.
In an age of sky-high land prices, the duplex-reach CQD12SSD is a smart solution to get the most out of your warehouse. It is backed by a two-year EP warranty.
- Standing operator platform
- 1200kg load capacity

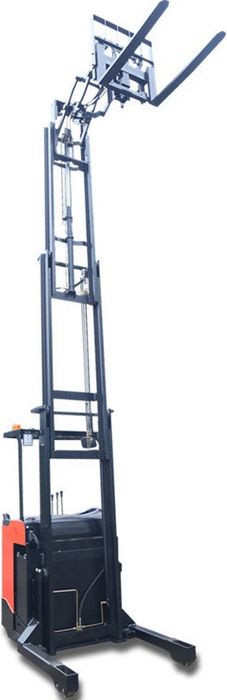

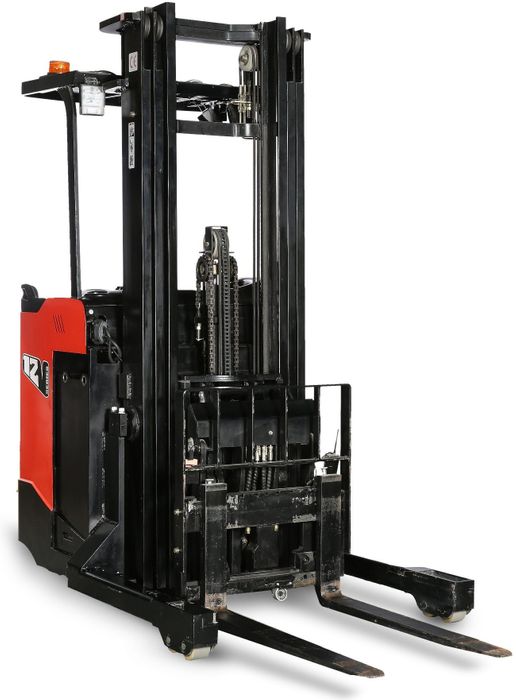

- 4.8m triplex container mast (standard; options from 3.0m to 5.5m)
- 2210mm lowered height with 1270mm freelift (standard)

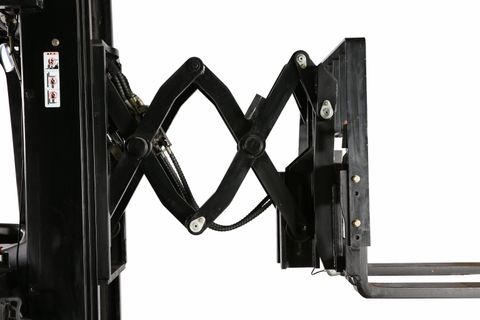

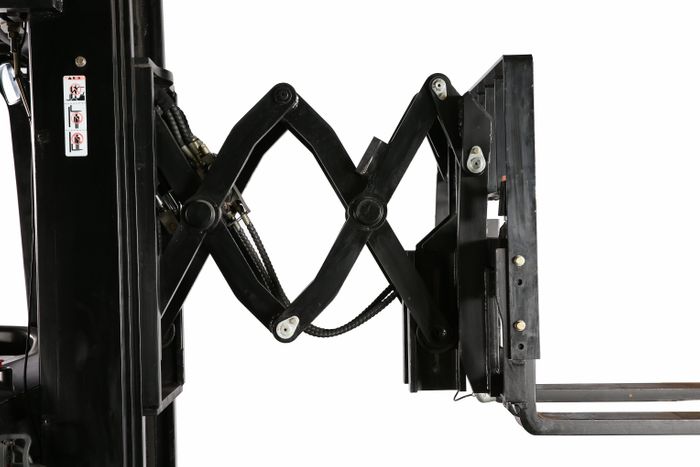

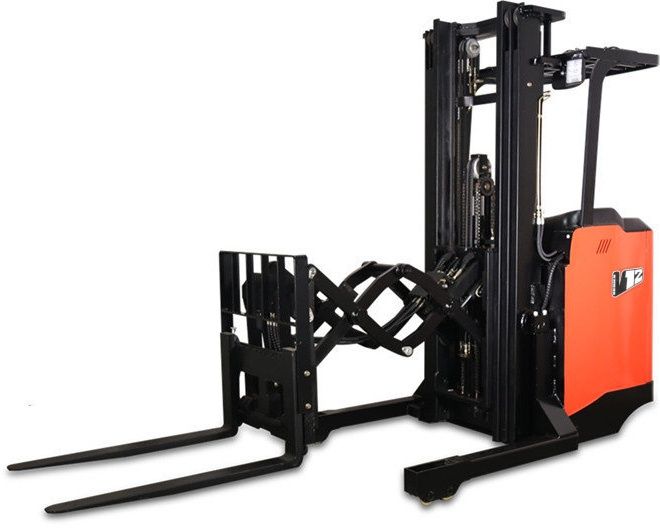

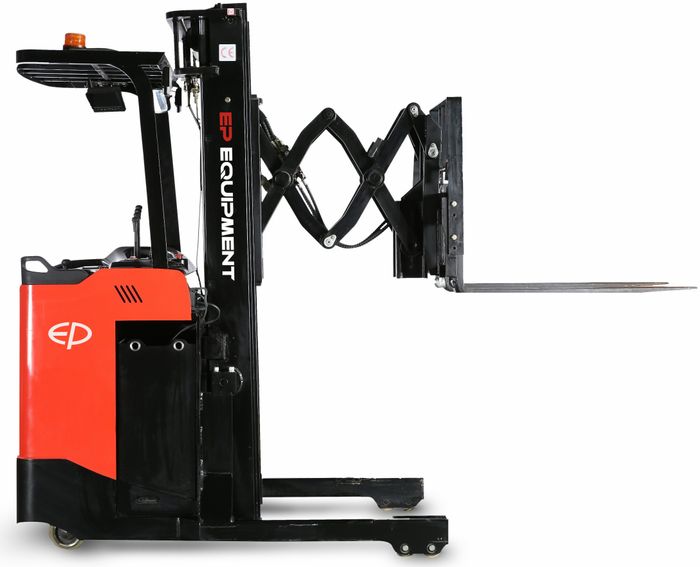

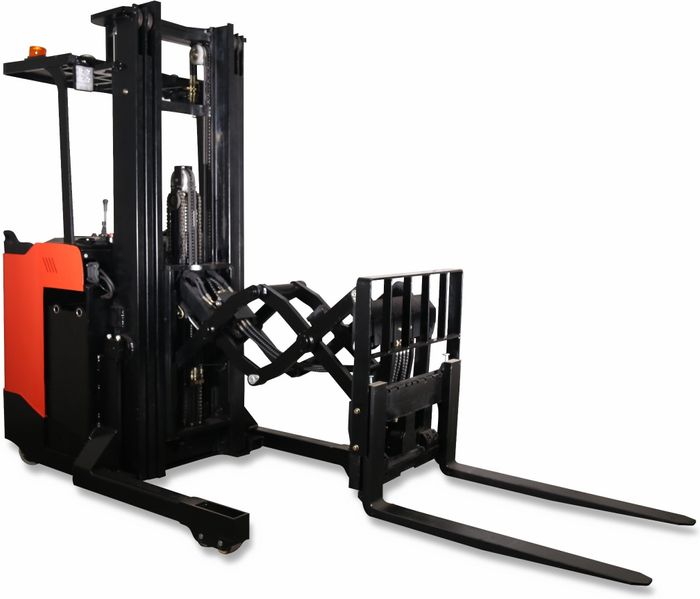

- 1000mm duplex pantograph reach with sideshift
- Integrated camera system
- 48V/420Ah lead-acid battery on lateral roller bed
- External charger
- ZAPI AC drive controller, DC lift controller
- Electronic fingertip controls
- Electromagnetic braking
- 24-month factory warranty
