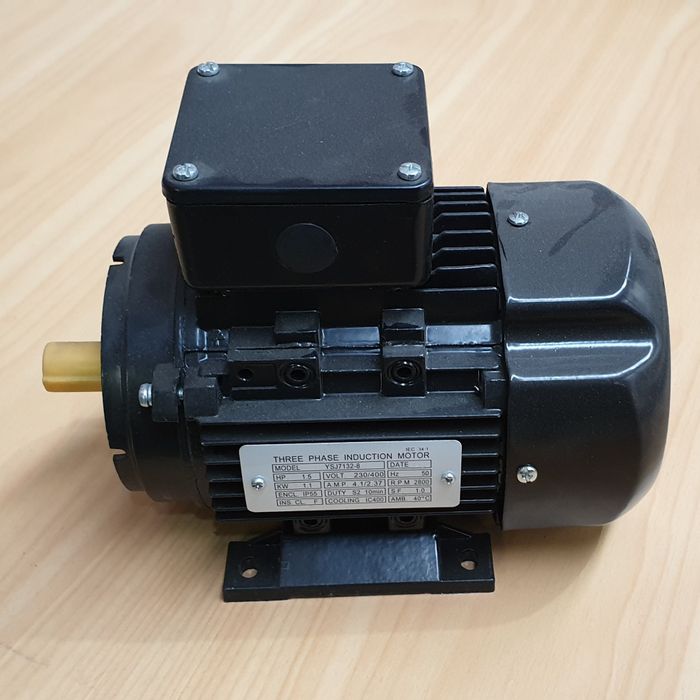

Motor, 3-ph 2-pole 1.1kW 400VAC 71-frame
Three-phase induction motor to suit Simpro hydraulic powerpacks, rated 1.1kW at 2800rpm with 71-frame IEC construction.
Stock Code:
0880050035
Price:
NZ$1,000.00 +GST
In Stock
Description
Three-phase induction motor to suit Simpro hydraulic powerpacks, rated 1.1kW at 2800rpm with 71-frame IEC construction. Totally enclosed IP55 housing with dual-voltage windings for 230V delta or 400V star supply.
- Model YSJ7132-8
- Class 71-frame 2-pole
- Input 230/400VAC 50Hz 3-phase 4.8/2.8A (delta/star)
- Output 1.1kW 3.8Nm 2800rpm
- Duty S2 10min at 40°C
- Protection IP55
- Dimensions 240 x 141 x 187mm (LxWxH)
- Weight 8.0kg
- Certification CE/UKCA
- Warranty 12-month back-to-base
12 month Back to Base Warranty
