ES10-10ES

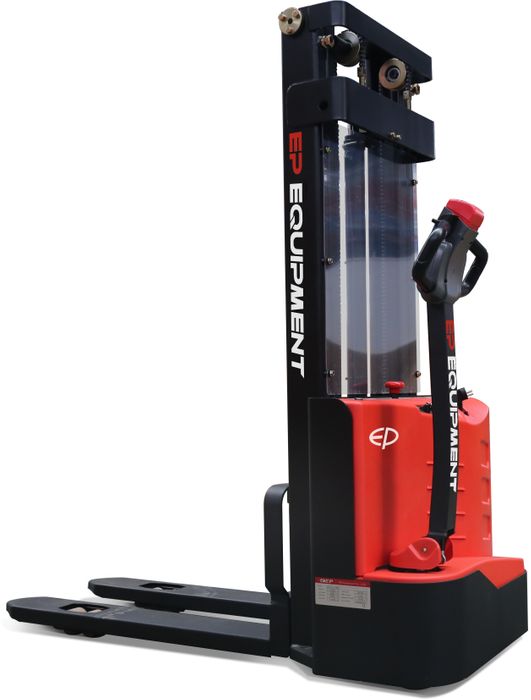

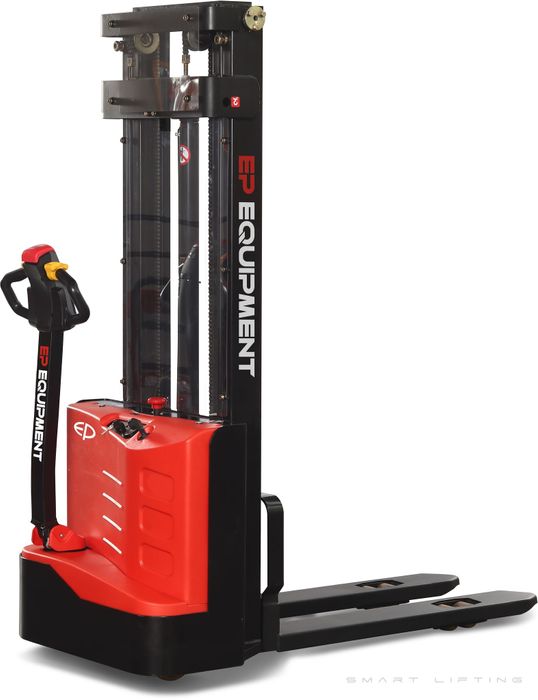

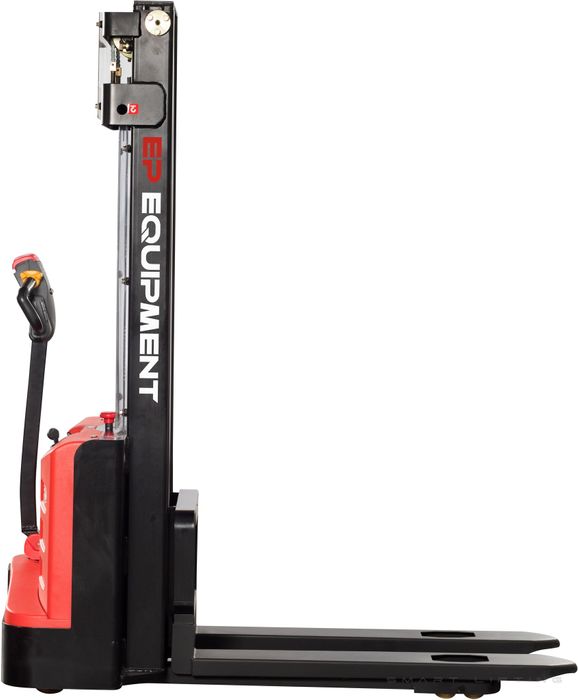

ES10-10ES is a series of compact 1-tonne pallet stackers from EP Equipment, with 2.0 to 3.6m duplex masts and fork-over legs to suit EURO pallets. Maintenance-free 2.0kWh AGM or LFP batteries and an onboard charger let the stackers top up from any 1-phase power outlet.

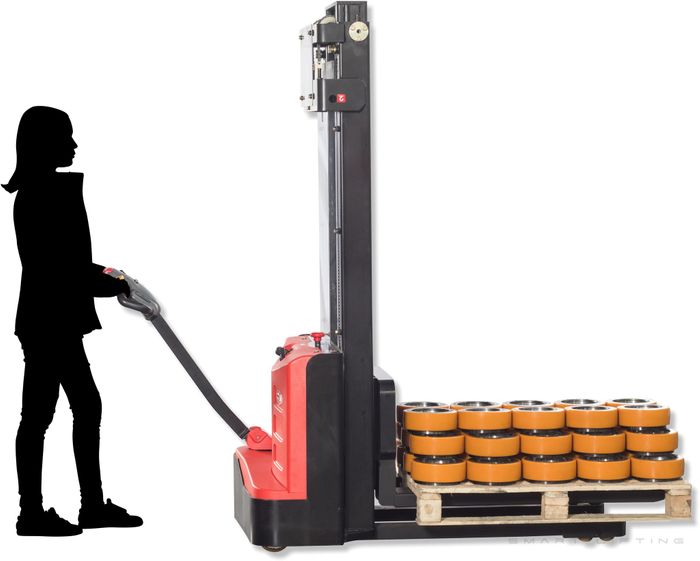

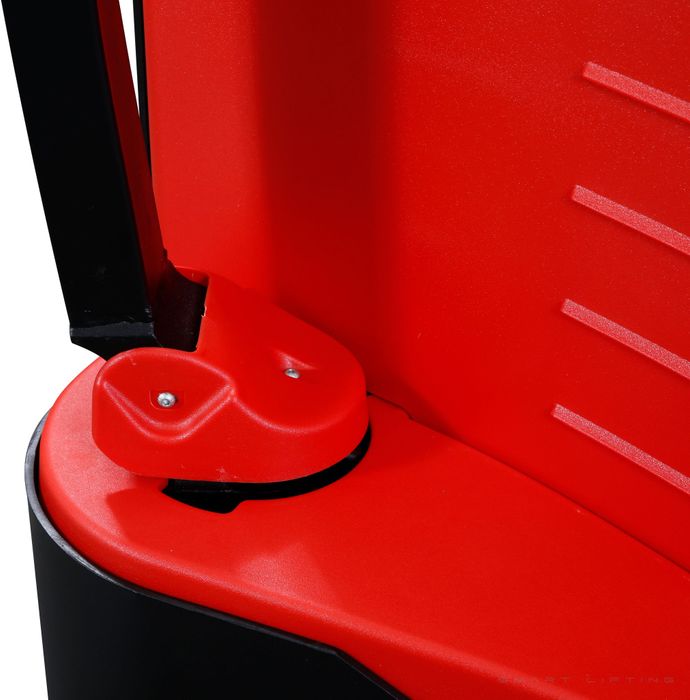

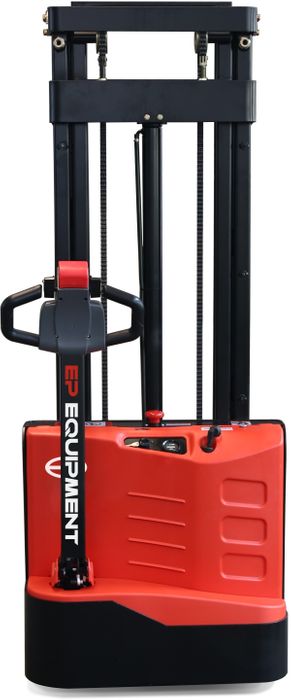

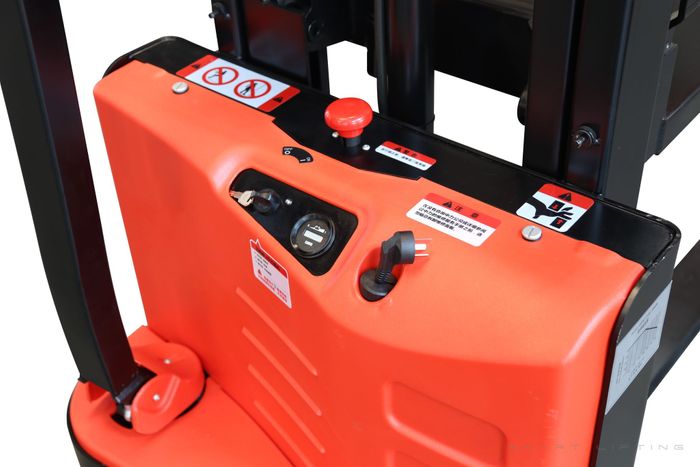

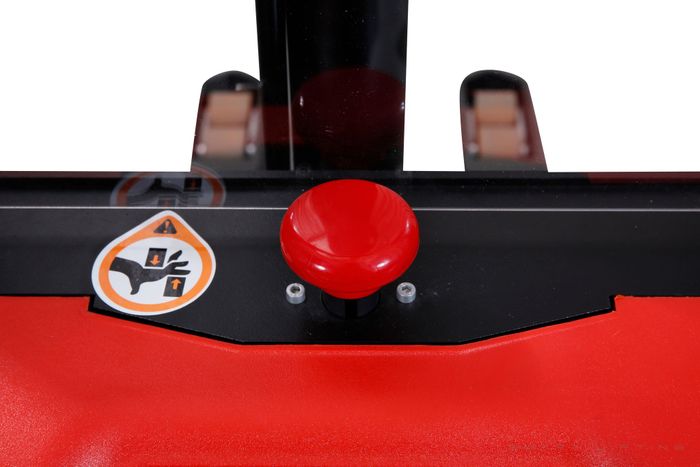

ES10-10ES is self-propelled, with a Curtis DC controller and regenerative braking. The side-mounted long-arm tiller, with progressive dual-hand controls, gives smooth steering and clear sightlines of the load and floor. Safety features include automatic speed limiting above 500mm, anti-rollback braking for ramps, a hose-burst valve, a crush-safety button on the tiller, and an emergency stop.
Compact and affordable, with a tight 1408mm turning radius, ES10-10ES is a smart solution for light-duty EURO pallet stacking. It is backed by a two-year warranty.
- Capacity 1000kg at 600mm load centre

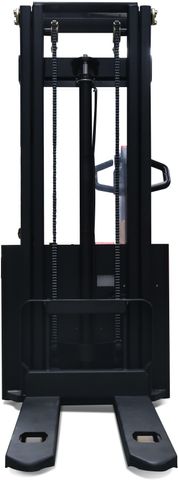

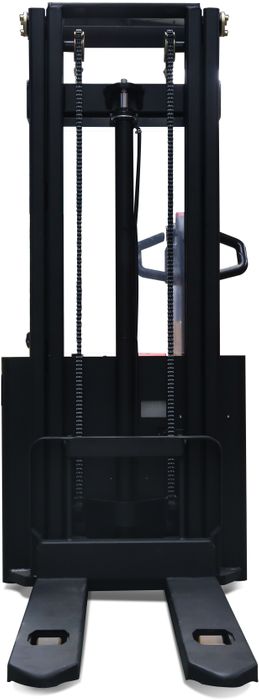

- Mast 2000/2500/3000/3300/3600mm duplex (no freelift)
- Motor 0.65kW DC drive / 2.2kW DC lift
- Battery 24V/85Ah AGM or LFP
- Charger 24V/10A or 24V/30A onboard, input 100-240VAC 50/60Hz 1-ph
- Speed 4.5km/h
- Aisle Width 2150mm
- Forks 560 x 1150 x 88mm (EPAL 2-way)
- Balance Legs fixed fork-over
- Tyres ⌀210mm PU drive, ⌀80mm PU load, ⌀130mm PU castor
- Dimensions 590+1150 x 800 x ~1522-4121mm (LxWxH mast closed-open)
- Weight 480~560kg
- Warranty 24-month factory
