EFL1003-HV

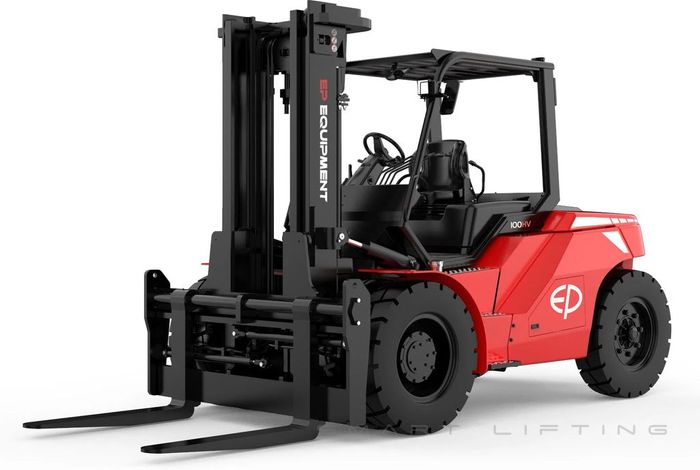

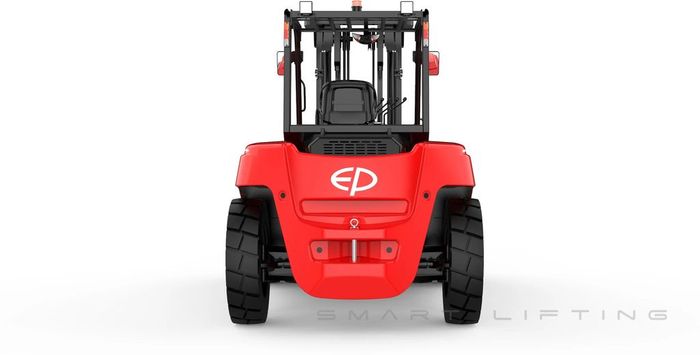

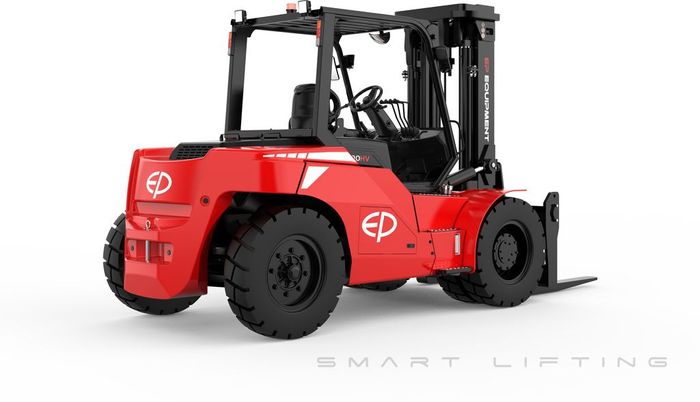

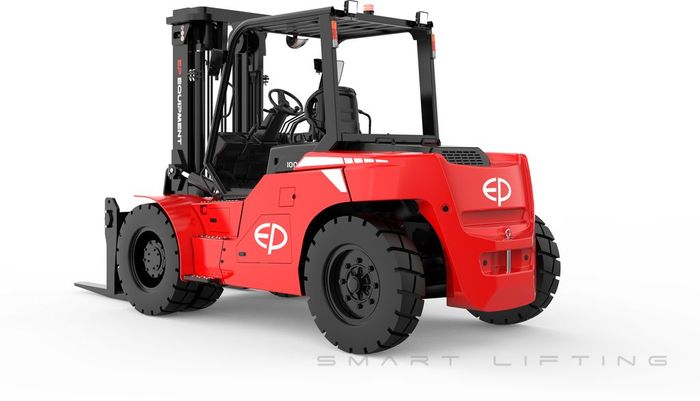

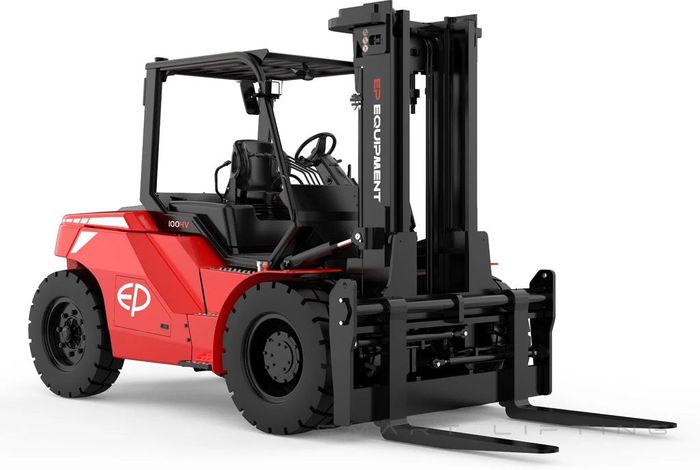

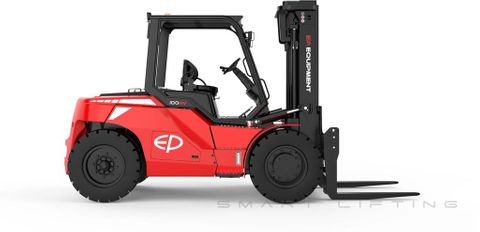

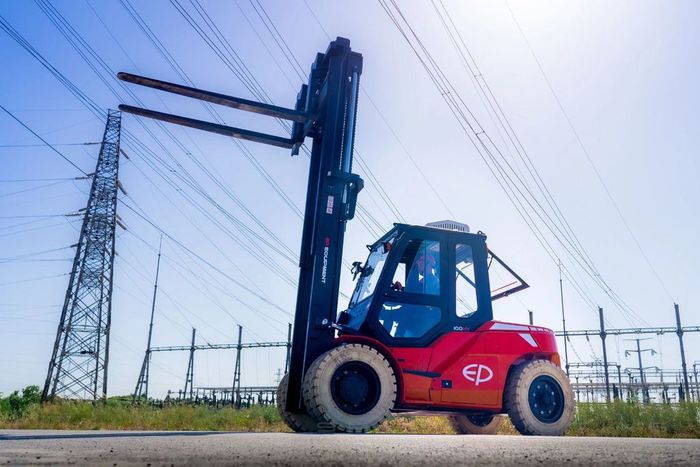

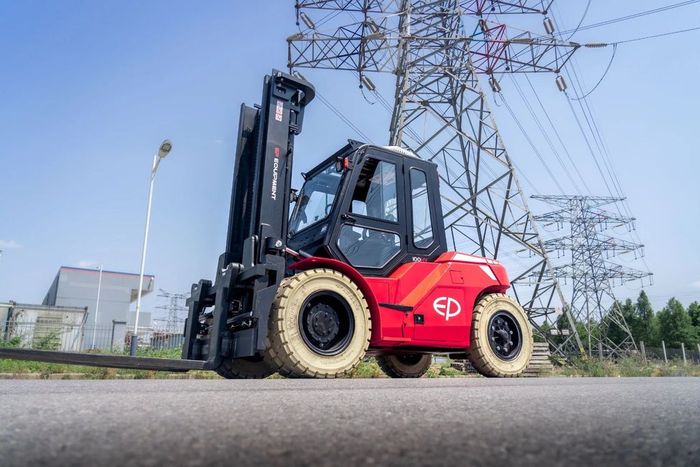

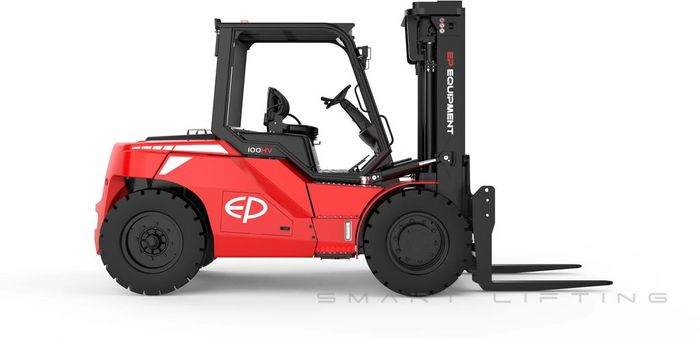

EFL1003-HV6 is a 10.0-tonne electric counterbalance forklift from EP Equipment, purpose-built for mining, steel production, ports and heavy manufacturing. A double-tyred front drive axle and high ground clearance deliver stability and traction across rough or uneven terrain, while a 4.5m triplex mast with tilt and sideshift handles heavy loads at height.
The 60kW PMSM drivetrain and large-capacity LFP battery deliver extended runtime with 1C fast charging for multi-shift operations. Water cooling for the motor and battery, combined with oil cooling for the hydraulics, maintains consistent performance under sustained heavy loads and extreme temperatures.
Rated IPX4 for all-weather operation with IP67-protected high-voltage components, EFL1003-HV6 operates confidently in rain, dust and temperature extremes. Hydraulic mast buffering ensures smooth load handling, and the wide-track chassis provides a stable platform for heavy loads on rough terrain.
Available from Simpro under outright purchase, lease and lease-to-own, EFL1003-HV6 is backed by a two-year EP warranty.
- Capacity 10.0-tonne at 600mm load centre

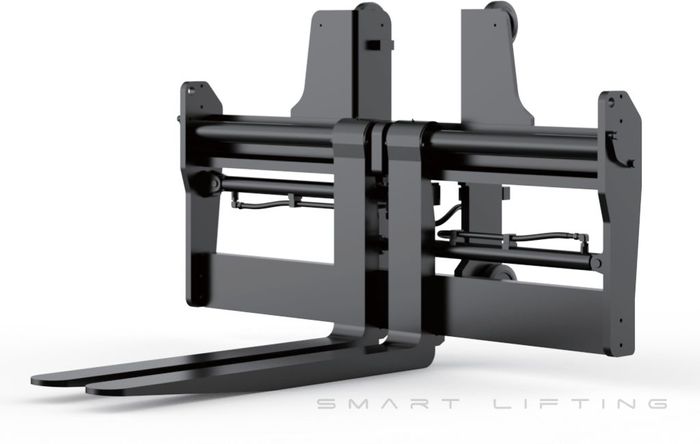

- Mast 4.5m triplex with tilt and sideshift
- Freelift 0mm
- Motor 60kW PMSM
- Battery 309V/304Ah LFP (~5 hour runtime)
- Charger 309V/65A offboard (309V/130A option)
- Speed 30km/h
- Gradeability 22%
- Turning radius 3605mm
- Tyres pneumatic 9.00-20-14PR / 9.00-20-14PR (front duals/rear)
- Dimensions 3960+1520 x 2200 x 2950-5950mm (L x W x H mast closed-open)
- Weight ~14100kg
- Warranty 24-month factory
